Image Segmentation with K-means

English · فارسی

Image Segmentation with K-means

Computer Science Dept, Ferdowsi University of Mashhad

What “segmentation” means

An image is a table of numbers. A gray image is an H x W array with one brightness value per pixel; a colour image has three numbers per pixel. The segmentation of an image is a label for every pixel saying which region, or which object, that pixel belongs to. Segmentation therefore does not change the picture, it changes how we describe it: instead of 240,000 gray levels we end up with a handful of regions.

Two ways of finding those labels are compared in this page:

  1. Thresholding — a cut value chosen by hand: pixels above it are one region, the rest are another.

  2. Clustering — the cut is learned from the data by K-means, and it generalises to more than two regions without anybody writing a threshold down.

The third step adds the missing ingredient of the first two: the position of the pixel. A brightness-only method cannot tell two equally bright regions apart, however far apart they are in the picture.

What you should be able to do at the end

  • turn an image into the (n_pixels, n_features) table that scikit-learn expects, and explain why passing the raw image to fit is the wrong shape;

  • read labels_ and cluster_centers_ and say which of the two paints the picture, and why;

  • add coordinates as extra features and predict what changes;

  • explain why cluster numbers have to be reordered before two segmentations can be compared.

The tools

Four libraries are enough: NumPy for the arrays, matplotlib to look at them, KMeans from scikit-learn, and skimage for the sample photograph used in the second half.

Source

1. A toy image

Real photographs are large and their histograms are smooth, which hides what the algorithm actually does. So the first example is a 5 x 6 array of small integers, chosen so that every number can be read by eye. Think of each entry as a gray level: 0 is black and 9 is white.

A fixed random seed (default_rng(0)) is used so that the numbers — and therefore every figure in this section — are the same each time the page is built.

Source
array([[8, 6, 5, 2, 3, 0], [0, 0, 1, 8, 6, 9], [5, 6, 9, 7, 6, 5], [5, 9, 2, 8, 6, 0], [3, 8, 5, 0, 7, 7]])

imshow draws the array as a picture, but the scale of the colours has to be stated: without vmin and vmax matplotlib rescales the colormap to whatever range happens to be in the data, and two images of the same scene can then look different. Here the scale is fixed to the full range 0..9.

Source
<Figure size 300x400 with 2 Axes>

2. The simplest segmentation: thresholding

Pick a number, say 5, and call every pixel above it foreground:

label(i,j)={1if img[i,j]>5,0otherwise.\text{label}(i,j) = \begin{cases} 1 & \text{if } \mathrm{img}[i,j] > 5,\\ 0 & \text{otherwise.} \end{cases}

In NumPy this is a single comparison. The result is a Boolean array with the same shape as the image, and True/False behave exactly like 1/0, which is why a two-region segmentation is a binary image.

Source
(numpy.ndarray, array([[ True, True, False, False, False, False], [False, False, False, True, True, True], [False, True, True, True, True, False], [False, True, False, True, True, False], [False, True, False, False, True, True]]))

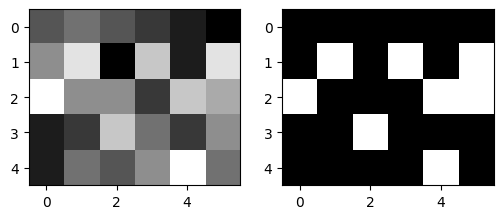

The segmentation is the mask, not the numbers. To see it, put the two arrays side by side on their own scales: 0..9 for the original so that the gray levels mean what they meant, and 0..1 for the mask so that black really is label 0.

Source
<Figure size 700x300 with 2 Axes>

Where thresholding stops

Three things go wrong as soon as the image is a photograph rather than a toy:

  • The cut is invented. Why 5 and not 4 or 6? On this toy array the answer barely matters; on a real image every choice gives a different area, and nobody knows which one is right.

  • One cut cannot survive uneven lighting. A shadowed white cup and a lit dark table can have the same gray level, so no single number separates “cup” from “table” everywhere in the image.

  • There may be more than two regions. A third region needs a second hand-chosen cut, a fourth needs a third, and the cuts are no longer independent of each other.

Clustering replaces the invented cut by one estimated from the data: we say only how many groups we want, K, and K-means finds where the groups are.

3. K-means on one feature at a time

K-means partitions the samples into K groups by alternating two steps:

  1. assign every sample to the nearest center,

  2. update every center to the average of the samples assigned to it,

until nothing moves. The KMeans class from scikit-learn does the whole thing in .fit(X), and leaves two results behind:

attributeshapemeaning
labels_(n_samples,)which group each sample landed in: 0, 1, …, K-1
cluster_centers_(K, n_features)the average of each group

The shape K-means expects

KMeans knows nothing about images. It receives a table with one sample per row and one feature per column:

X.shape == (n_samples, n_features)

A list of seven numbers is therefore not a valid table: it is a single sample with seven features, which is a different problem. reshape(-1, 1) turns the seven numbers into seven rows of one column each, and -1 means “work out this dimension yourself”.

Source
X.shape        : (7, 1)
labels         : [1 1 1 0 0 0 0]
cluster centers: [8.5 2. ]

Two notes on the output.

  • The labels are 0 and 1, but nothing says that 0 is the darker group. Cluster numbers are arbitrary names; here it happens to come out in one order, and in another run of another data set it may be reversed.

  • The centers are the averages, not members: the data contains 2 and 7, the centers are 2.0 and 8.0. That is the “learned cut” — everything below 5 belongs to the first group, everything above to the second.

The trap: fitting the image itself

Now the same call on the toy image. img has shape 5 x 6, so scikit-learn reads it as 5 samples with 6 features each — five rows of six numbers — and returns five labels, one per row. The result is a grouping of horizontal lines, not a segmentation of pixels.

Source
features K-means read: 6
number of labels     : 5
labels               : [0 1 0 0 0]

The fix is to say explicitly what a sample is: one pixel, one gray level. Flattening the image into (H*W, 1) gives 30 samples with a single feature, and then the two groups are “dark pixels” and “bright pixels” — exactly what thresholding computed, except that the cut was learned instead of typed in.

Source
X.shape: (30, 1)
labels : [0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 0 0 1 0 0]
centers: [1.1  6.75]

Putting the labels back

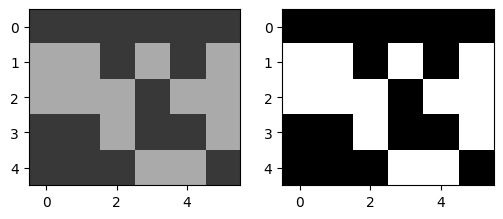

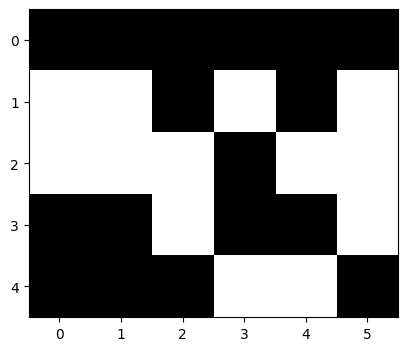

labels is a flat list in row-major order: the first W entries are the first row of the image, the next W the second row, and so on — the same order in which reshape(-1, 1) read the pixels. Reshaping to img.shape therefore puts every label back on its own pixel.

Source
<Figure size 700x300 with 2 Axes>

Labels are names; centers are gray levels

The right panel shows the labels, and it looks like a segmentation — but the colours it uses are cluster ids 0 and 1, not brightness. If the labels had come out the other way round, the same regions would have been painted in swapped shades, which makes two segmentations impossible to compare.

Painting each pixel with the center of its cluster repairs this. The image is then posterised: every region gets one gray level, and those levels are the true average brightness of the region, so an ordering exists.

Source
label -> learned gray level: {0: 6.75, 1: 1.1}
Source
<Figure size 900x300 with 3 Axes>

4. A real photograph

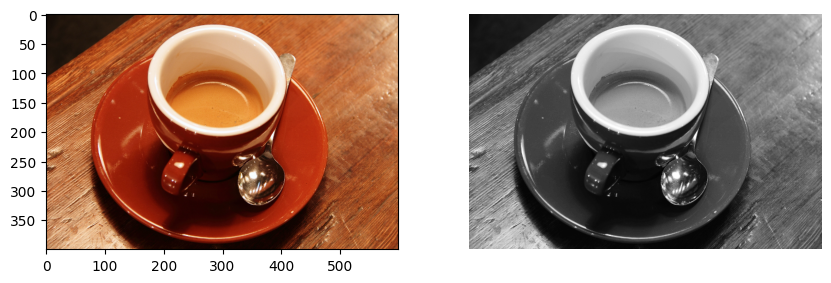

skimage.data ships a few test images; the one used here is a 400 x 600 colour picture of a coffee cup. rgb2gray converts it with the usual weighted average of the three channels, so a pixel becomes a single number in [0, 1]. Working in gray first keeps the feature space one-dimensional, which makes what K-means does easy to read; clustering in colour is one of the exercises.

Source
colour image: (400, 600, 3) uint8
gray image  : (400, 600) 0.0002827450980392157 1.0
<Figure size 1000x400 with 2 Axes>

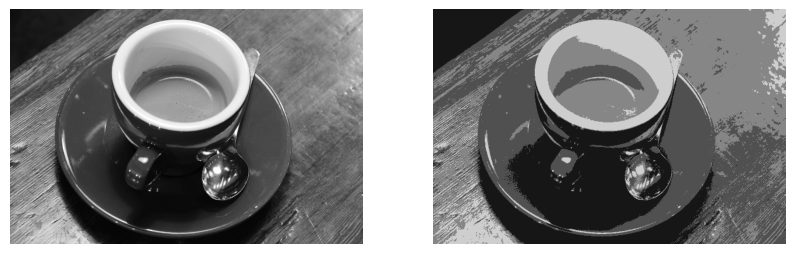

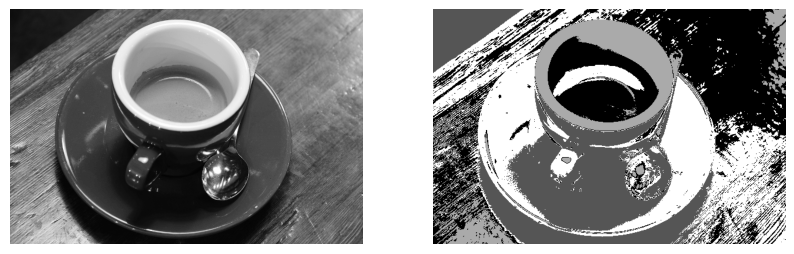

K = 4 asks for four brightness groups: typically the dark table, the mid-tone plate, the bright cup, and the highlight on the cup. Nothing in the code knows about cups or tables — the pixels are sorted by their gray level alone, and the picture is painted afterwards.

Source
number of pixels   : 240000
learned gray levels: [0.088 0.312 0.522 0.804]
<Figure size 1000x400 with 2 Axes>
Source
<Figure size 1000x400 with 2 Axes>

Choosing K

K is the only number the user supplies, and it is a statement about the scene, not about the algorithm: “I believe there are four kinds of surface here”. Too small and two different surfaces share a region; too large and one surface is split into shades of itself. The usual diagnostics — the elbow of the inertia, the silhouette score — are the subject of the clustering validation page.

5. Pixel positions as extra features

Everything above looked at one pixel at a time. Flattening the image threw away the only thing that said where a pixel was: two pixels with the same gray level are the same sample to K-means, whether they sit next to each other or at opposite corners. So a method that uses brightness only can never separate two parts of an object that happen to have the same colour, and it happily paints scattered islands of one region inside another.

The repair is to give every pixel three features instead of one: its gray level v, its column x and its row y. K-means then clusters points in 3-D, and two pixels must agree in brightness and be close in space to share a region.

Scale matters

The gray level lives in [0, 1], while a column index runs up to w - 1 — a few hundred. Euclidean distance is dominated by the largest numbers, so with raw coordinates the brightness would be ignored and the result would be a tiling of the image into equal squares. Dividing every column by its maximum puts all three features on a [0, 1] scale, where they can compete.

Source
image size: (200, 300) -> pixels: 60000
Source
coordinates of the first three pixels:
 [[0 0]
 [1 0]
 [2 0]]
min / max of each feature before scaling:
 [[1.48394732e-02 0.00000000e+00 0.00000000e+00]
 [9.94999902e-01 2.99000000e+02 1.99000000e+02]]
after scaling:
 [[0.057 0.    0.   ]
 [0.057 0.003 0.   ]
 [0.059 0.007 0.   ]]
Source
<Figure size 900x700 with 4 Axes>

The difference is visible immediately: with coordinates the regions follow the outline of the cup, and the scattered bright specks of the intensity-only result disappear, because a speck is now close to a real region in space or it is not.

Two remarks before going on.

  • With coordinates, the distance mixes brightness difference and spatial distance, and the normalisation decides the exchange rate. Rescaling the coordinate columns by a factor \lambda < 1 weakens the spatial term and makes the result look more like the intensity-only version, which is the continuous knob between the two extremes shown above.

  • The third and fourth panels are painted with cluster ids, so their shades are arbitrary. Comparing them fairly needs the step below.

Reordering the labels by brightness

Cluster 0 in one segmentation and cluster 0 in another have nothing in common: the numbering depends on where the centers happened to start. To compare two segmentations — and even to look at one — number the clusters by the average gray level of their pixels, so that 0 is always the darkest region and K-1 the brightest. np.argsort gives the ranking, and the loop below applies that ranking to the labels.

Source
Source
intensity only : [0.043 0.095 0.154 0.213 0.269 0.313 0.364 0.415 0.466 0.516 0.574 0.628
 0.691 0.76  0.851 0.935]
intensity + xy : [0.091 0.101 0.105 0.124 0.254 0.294 0.362 0.377 0.444 0.468 0.493 0.558
 0.57  0.642 0.814 0.885]
Source
<Figure size 900x700 with 4 Axes>
<Figure size 1500x500 with 3 Axes>

Application: superpixels

A superpixel example with the built-in SLIC implementation

skimage provides SLIC out of the box. To keep the demonstration fast while still showing the characteristic shape of superpixels, the input photograph is first downscaled to half of its original size (512×512 → 256×256). The algorithm is then applied to this smaller image.

SLIC works by running a local K-means over 5-dimensional feature vectors that combine three colour components (in the perceptually uniform Lab space) with the two pixel coordinates (x, y). Restricting each update to a small window around every centre is what makes the regions compact and roughly grid-like. The compactness parameter plays the role of the weight m on the spatial term: larger values make the superpixels more regular; smaller values let the colour term dominate and let regions follow colour boundaries more freely.

image shape after rescaling: (256, 256, 3)
<Figure size 1200x500 with 2 Axes>

A superpixel-style segmentation with our own K-means

The same idea can be reproduced with nothing more than KMeans from scikit-learn. Each pixel becomes one sample whose features are three Lab colour components (rescaled to [0, 1]) plus the pixel’s normalised (x, y) position. The spatial weight controls how strongly the algorithm prefers nearby pixels over colour similarity.

The resulting regions look less regular than true SLIC because this is a global K-means: it does not restrict assignments to a local window and it does not perform a connectivity step. It is, however, the same idea, and it makes clear that the whole trick behind SLIC is simply “treat the pixel coordinates as extra features and cluster the 5-D vectors”.

The input image is downscaled to half its original size so that the runtime on a 65,536-sample problem stays reasonable while the visual result is still informative.

image shape after rescaling: (256, 256, 3)
<Figure size 1200x500 with 2 Axes>

The difference you see is not a bug: it is the exact reason why SLIC is described as a local variant of K-means. Restricting the search to a window around each centre and enforcing connectivity afterwards are the two ingredients that turn a global K-means into a proper superpixel algorithm.

6. The three methods side by side

methodfeature vector of a pixelwhat it can separatewhat it cannot
thresholding— (a cut on v)two brightness levelsanything else; needs a hand-set cut
K-means on v(v)K brightness levels, learnedregions of equal brightness in different places
K-means on (v, x, y)(v, x, y)brightness and spatial compactnessobjects that are not compact; needs a scale weight

The order of the table is the story of the page. Each row adds one piece of information that the row above it could not see: the first has no learned parameters at all, the second learns the levels, the third learns the levels and uses where the pixels are.

None of them knows what a cup is. What changes is only the representation of a pixel — one number, or three — and the segmentation is whatever the clustering of that representation produces.

Summary

  • Segmentation assigns a label to each pixel; it is a description of the image, not a change to it.

  • Thresholding is a hand-set cut on the gray level: correct on a toy array, fragile under uneven lighting, and blind beyond two regions.

  • KMeans wants (n_samples, n_features). For an image that means img.reshape(-1, 1) — one pixel per row — never the raw H x W array, which is read as H samples with W features.

  • labels_ are arbitrary names; cluster_centers_[labels] paints the picture with real gray levels and makes the result comparable.

  • Labels always come back flat and in row-major order, so reshape(img.shape) puts them on the right pixels.

  • Adding (x, y) as features lets the clustering use position, which removes scattered islands and follows object outlines; the columns must be scaled to a common range first, and that scale is the weight of the spatial term.

  • Cluster ids must be reordered (here by mean brightness) before two segmentations can be compared.

Exercises

  1. Change the threshold in section 2 from 5 to 6 and to 4. Which pixels change region, and what would a “correct” answer even mean on this toy array?

  2. Cluster the colour image: use coffee.reshape(-1, 3) and K = 8, then paint each pixel with cluster_centers_[labels] reshaped back to (H, W, 3). Where does colour succeed and gray fail?

  3. For the coffee cup, run the intensity-only segmentation with K = 2, 4, 8, 16 and describe what each extra cluster buys. When does the result stop being a segmentation and become a shade reduction?

  4. Change K to 4 in the coordinates experiment while keeping the normalisation, and then repeat it with the coordinate columns multiplied by 0.2. Explain the difference in terms of the two distance terms.

  5. Plot the inertia (kmeans.inertia_) against K for K = 1..10 on the gray image. Is there an elbow, and does it agree with the K you would choose by eye?

Sources

References
  1. Zaki, M. J., & Meira, W. (2020). Data Mining and Machine Learning: Fundamental Concepts and Algorithms (2nd ed.). Cambridge University Press. https://www.cambridge.org/9781108497367
