Graph extentions#
import networkx as nx
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
from scipy import stats
pd.set_option('display.max_colwidth', 200)
%matplotlib inline
Weighted Graphs#
Definition: A weighted graph \(G\) is a graph where each link \(e\) has a real number \(w(e)\) associated with it, called weight. For a subgraph \(H \subseteq G\), the weight of \(H\) is simply the sum of weights of its links: \(w(H) = \sum_{e \in E(H)} w(e)\).
Example:
node_labels = [0,1,2,3,4]
edge_labels = [(0, 1), (0,2), (1,2), (2,3), (3,4), (1,3)]
weight = [1, 1, 2, 2, 4, 2]
weighted_edges = [(edge_labels[i][0], edge_labels[i][1], weight[i]) for i in range(len(edge_labels))]
W = nx.Graph()
W.add_nodes_from(node_labels)
W.add_weighted_edges_from(weighted_edges, weight='weight')

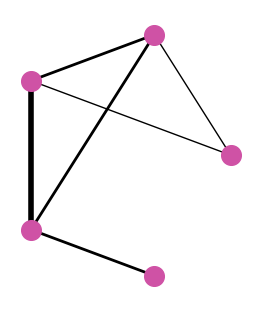

fig, axs = plt.subplots(figsize=(2.5,3), facecolor='w', nrows=1, ncols=1, constrained_layout=True)
pos = nx.layout.circular_layout(W)
nx.draw_networkx_nodes(W, pos, node_color="#cf52a5", linewidths=1, ax=axs, node_size=200)
nx.draw_networkx_edges(W, pos, width=weight, ax=axs)
axs.axis('off');
W.edges.data("weight")
EdgeDataView([(0, 1, 1), (0, 2, 1), (1, 2, 2), (1, 3, 2), (2, 3, 2), (3, 4, 4)])
WA = nx.adjacency_matrix(W, weight='weight').todense()
WA
array([[0, 1, 1, 0, 0],
[1, 0, 2, 2, 0],
[1, 2, 0, 2, 0],
[0, 2, 2, 0, 4],
[0, 0, 0, 4, 0]])
fig, axs = plt.subplots(figsize=(4,3), facecolor='w', nrows=1, ncols=1)
cmap_ = plt.cm.get_cmap('Greys_r')
im = axs.imshow(WA, cmap=cmap_)
cbar = plt.colorbar(im, ax=axs, ticks=[0,1,2,3,4])
cbar.set_label("weights")
axs.set_xlabel("Nodes"); axs.set_ylabel("Nodes");
C:\Users\m.amintoosi\AppData\Local\Temp\ipykernel_23840\3096156229.py:2: MatplotlibDeprecationWarning: The get_cmap function was deprecated in Matplotlib 3.7 and will be removed in 3.11. Use ``matplotlib.colormaps[name]`` or ``matplotlib.colormaps.get_cmap()`` or ``pyplot.get_cmap()`` instead.
cmap_ = plt.cm.get_cmap('Greys_r')
Directed graphs (Digraph)#
Sometimes, the direction of the connections between two nodes are relevant for modelling.
In certain cases, such as modeling a network of people based on phone calls, the direction of the connections becomes significant. We need to distinguish between the caller (sender) and the person answering the call (receiver). If we use undirected networks, this valuable information about who is who is lost.
To address this, we can utilize directed graphs, where the links have a specific direction or sense.
Definition: A directed graph or digraph \(D\) consists of a collection of vertices \(V\), and a collection of arcs \(E\), denoted as \(D = (V,E)\). Each arc \(e = \langle u, v \rangle\) connects vertex \(u \in V\) to another (not necessarily distinct) vertex \(v\). The vertex \(u\) is called the origin of \(e\) and \(v\) is called the destination.
Connectivity in DiGraphs#
It is often important to “measure” the distance between one node and another. This is called “Connectivity” of the network.
It is measured for both undirected and directed networks, and consists of finding paths between one node and another.
Definition: Consider a digraph \(D\). A directed path-(\(v_0, v_k\)) in \(D\) is an alternating sequence \([v_0, a_0, v_1, a_1, a_1, \dots, v_{k-1}, a_{k-1}, v_k]\) of vertices and arcs of \(D\) with \(\langle \overrightarrow{v_i, v_{i+1}} \rangle\). A directed path is a directed walk in which all arcs are distinct; a directed path is a directed path in which all vertices are also distinct.
Example:
For the previous Graph, what would a path from node V1 to V4 look like?
A path can be:
V1-> a -> V2 -> f -> V4.
On the other hand, we can also go from V1 to V4 as follows:
V1 -> a -> V2 -> b -> V3 -> c -> V4.
We will consider this concept of “path” as node accessibility in Sub-Chapter 4 as a property of the network.
Weighted digraphs#
Definition: A directed weighted graph \(D\) consists of a collection of vertices \(V\), a collection of links \(E\) and weights \(W\), denoted as \(D = (V,E,W)\). Each link \(e = \langle u, v \rangle\) connects vertex \(u \in V\) to another (not necessarily distinct) vertex \(v\). The vertex \(u\) is called the origin of \(e\) and \(v\) is called the destination.
Example:
node_labels = [0,1,2,3,4]
edge_labels = [(0, 1), (0,2), (1,2), (2,3), (4,3), (3,4), (1,3), (4,0)]
weight = [1, 1, 2, 2, 4, 2, 1, 2]
weighted_edges = [(edge_labels[i][0], edge_labels[i][1], weight[i]) for i in range(len(edge_labels))]
WD = nx.DiGraph()
WD.add_nodes_from(node_labels)
WD.add_weighted_edges_from(weighted_edges, weight='weight')

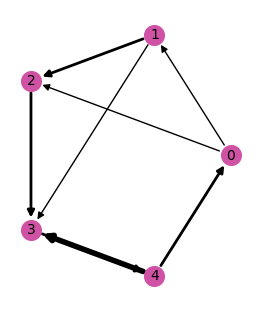

fig, axs = plt.subplots(figsize=(2.5, 3), facecolor='w', nrows=1, ncols=1, constrained_layout=True)
pos = nx.layout.circular_layout(WD)
nx.draw_networkx_nodes(WD, pos, node_color="#cf52a5", linewidths=1, ax=axs, node_size=200)
edge_weights = {(u, v): w for (u, v), w in zip(edge_labels, weight)}
widths = [edge_weights[(u, v)] for u, v in WD.edges()]
nx.draw_networkx_edges(WD, pos, width=widths, ax=axs)
nx.draw_networkx_labels(WD, pos, labels={n: str(n) for n in node_labels}, font_size=10, ax=axs)
axs.axis('off');
WD.in_degree(), WD.out_degree()
(InDegreeView({0: 1, 1: 1, 2: 2, 3: 3, 4: 1}),
OutDegreeView({0: 2, 1: 2, 2: 1, 3: 1, 4: 2}))
Bipartite Graph#
A bipartite graph can be defined as a graph whose vertices \(V\) can be partitioned into two sets, \(V_1\) and \(V_2\),disjoint and non-empty, such that each link \(E\) connects a vertex of \(V_1\) to \(V_2\). Formally it can be expressed as:
Where \(V_1 \cap V_2 = \emptyset\) (i.e., \(V_1\) and \(V_2\) are disjoint) and for each \(u,v \in E\), \(u \in V_1\) and \(v \in V_2\).
list_artists_names = [
'Slow Joy', #0
'La ciencia simple', #1
'Origami Angel', #2
'Jeff Rosenstock', #3
'Millencolin', #4
'NoFX', #5
]
list_artists_names
['Slow Joy',
'La ciencia simple',
'Origami Angel',
'Jeff Rosenstock',
'Millencolin',
'NoFX']
users_and_artists = {
0 : [0, 1, 2],
1 : [2, 3],
2 : [4, 5],
3 : [2, 4, 5]
}
list_users = list(users_and_artists.keys())
list_users
[0, 1, 2, 3]
list_artists = list(users_and_artists.values())
list_artists
[[0, 1, 2], [2, 3], [4, 5], [2, 4, 5]]
list_artists = list(users_and_artists.values())
print(list_artists)
list_artists = np.unique(np.concatenate(list_artists))
list_artists
[[0, 1, 2], [2, 3], [4, 5], [2, 4, 5]]
array([0, 1, 2, 3, 4, 5])
U = len(list_users)
A = len(list_artists)
print("U = %i A = %i" % (U, A))
U = 4 A = 6
conn_matrix = np.zeros(shape=(U,A))
conn_matrix
array([[0., 0., 0., 0., 0., 0.],
[0., 0., 0., 0., 0., 0.],
[0., 0., 0., 0., 0., 0.],
[0., 0., 0., 0., 0., 0.]])
users_and_artists[1]
[2, 3]
for i_u in range(U):
print(users_and_artists[i_u])
#for l_artists in users_and_artists[i_u]:
# print(l_artists)
conn_matrix[i_u, users_and_artists[i_u]] = 1
[0, 1, 2]
[2, 3]
[4, 5]
[2, 4, 5]
conn_matrix
array([[1., 1., 1., 0., 0., 0.],
[0., 0., 1., 1., 0., 0.],
[0., 0., 0., 0., 1., 1.],
[0., 0., 1., 0., 1., 1.]])
Graph of users connected by artists#
conn_matrix[0,:]
array([1., 1., 1., 0., 0., 0.])
conn_matrix[1,:]
array([0., 0., 1., 1., 0., 0.])
users_mat = np.zeros(shape=(U,U))
for i in range(U):
for j in range(i+1, U):
if np.sum(conn_matrix[i,:]*conn_matrix[j,:])>0:
users_mat[i,j] = np.sum(conn_matrix[i,:]*conn_matrix[j,:]) # 1
users_mat[j,i] = users_mat[i,j]
users_mat
array([[0., 1., 0., 1.],
[1., 0., 0., 1.],
[0., 0., 0., 2.],
[1., 1., 2., 0.]])
G_users = nx.Graph(users_mat)
labels = nx.get_edge_attributes(G_users,'weight')
fig, axs = plt.subplots(figsize=(4,4), facecolor='w', nrows=1, ncols=1, constrained_layout=True)
pos = nx.layout.circular_layout(G_users)
nx.draw_networkx_nodes(G_users, pos, node_color="#52cfa5", linewidths=1, ax=axs, node_size=500)
nx.draw_networkx_edges(G_users, pos, width=list(labels.values()), ax=axs)
nx.draw_networkx_edge_labels(G_users,pos=pos,edge_labels=labels)
nx.draw_networkx_labels(G_users,pos=pos, labels={n: str(n) for n in G_users.nodes()}, font_size=10, ax=axs)
axs.axis('off')

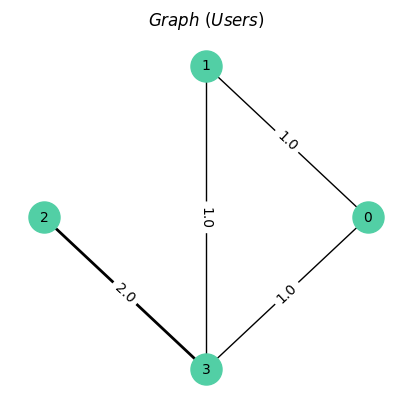

axs.set_title(r"$Graph\ (Users)$", fontsize=12);
Graph of artists connected by users#
artists_mat = np.zeros(shape=(A,A))
for i in range(A):
for j in range(i+1, A):
if np.sum(conn_matrix[:,i]*conn_matrix[:,j])>0:
artists_mat[i,j] = np.sum(conn_matrix[:,i]*conn_matrix[:,j])
artists_mat[j,i] = artists_mat[i,j]
artists_mat
array([[0., 1., 1., 0., 0., 0.],
[1., 0., 1., 0., 0., 0.],
[1., 1., 0., 1., 1., 1.],
[0., 0., 1., 0., 0., 0.],
[0., 0., 1., 0., 0., 2.],
[0., 0., 1., 0., 2., 0.]])
G_artists = nx.Graph(artists_mat)
labels = nx.get_edge_attributes(G_artists,'weight')
labels
{(0, 1): 1.0,
(0, 2): 1.0,
(1, 2): 1.0,
(2, 3): 1.0,
(2, 4): 1.0,
(2, 5): 1.0,
(4, 5): 2.0}
labels = nx.get_edge_attributes(G_artists, "weight")
list(labels.values())
[1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 2.0]
fig, axs = plt.subplots(figsize=(4,4), facecolor='w', nrows=1, ncols=1, constrained_layout=True)
pos = nx.layout.circular_layout(G_artists)
nx.draw_networkx_nodes(G_artists, pos, node_color="#52cfa5", linewidths=1, ax=axs, node_size=400)
nx.draw_networkx_edges(G_artists, pos, width=list(labels.values()), ax=axs)
nx.draw_networkx_edge_labels(G_artists,pos=pos,edge_labels=labels)
nx.draw_networkx_labels(G_artists,pos=pos, labels={n: str(n) for n in G_artists.nodes()}, font_size=10, ax=axs)
axs.axis('off')

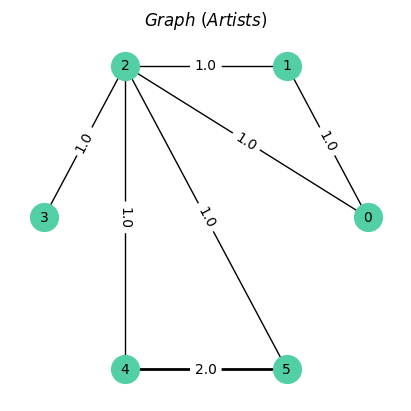

_ = axs.set_title(r"$Graph\ (Artists)$", fontsize=12)
Other applications#
Bipartite graphs find application in a wide range of diverse fields. For instance,
Recommendation systems.
Social network analysis.
Matching problems.
Data integration.
Biology and genetics.
Transport problems.
Citation analysis.
References#
Maarten van Steen (2010). Graph Theory and Complex Networks. An Introduction (Book).
Newman, M. (2010). Networks: An Introduction (Book). Robin J. Wilson (1996). Introduction to Graph Theory (eBook: https://www.maths.ed.ac.uk/~v1ranick/papers/wilsongraph.pdf).
